Product Introduction

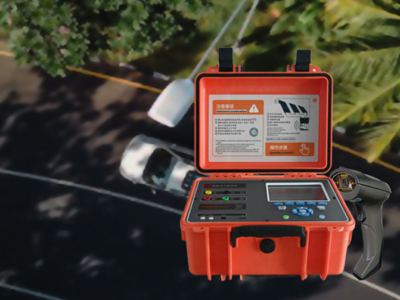

LX-PV33 is a Lexus standard photovoltaic module IV curve tester, which can accurately detect the emission of components and strings within the 2000V range

Electric efficiency and conversion rate, solving the problem of insufficient 1500V20A range in the mainstream market. At the same time, for the working electricity of about 20A for half modules

Flow measurement, expanding the testing range to 40A, can better perform component testing.
The LX-PV33 new solution provides dual glass battery detection function, without the need for back panel obstruction testing. The battery and string level dual sided dual glass

The component can shield the back panel's electrical energy influence through the forward and reverse dual sided multi irradiation algorithm, and only calculate the positive side battery's power generation efficiency and STC conversion value, which is fast
The precise and comprehensive detection function can be used as an optional configuration for third-party detection agencies and power station operation and maintenance

The whole machine is equipped with high-precision capacitive/resistive loads, as well as a faster radiometer operation module and corresponding IV curve division

Analysis software, which can analyze IV curves more clearly and has the advantage of continuous IV uninterrupted scanning, helps to detect the entire photovoltaic power plant system

LX-PV33 Detailed Specifications

Test Objects

Fill Factor	I-V Curve	Maximum Power	Maximum Power Voltage
Module Temperature	P-V Curve	Conversion Efficiency	Power Generation
Shadow Shading	Dust Attenuation	STC Comparison	Short-circuit Current
Maximum Power Current	Irradiance	Ambient Temperature	Open-circuit Voltage
Voltage & Current at MPP	Current at Fixed Voltage Point	Series Resistance	Shunt Resistance
String PR Value	Bifacial Front-side Power Generation	Bifacial Rear-side Power Generation	Perovskite Performance Analysis

Specification Parameters

Category	Parameter	LX-PV33
Voltage	Measurement Range	10V ~ 2000V
	Measurement Resolution	0.1V
	Measurement Accuracy	±0.5%±0.2V
Current	Measurement Range	0.01A ~ 40A
	Measurement Resolution	0.001A
	Measurement Accuracy	±0.5%±0.02A
Maximum Power Test	Repeatability Accuracy	±0.5%±3W
	Maximum Power Test Range	50W ~ 80KW
	Accuracy Converted to STC Maximum Power	Better than ±3%
Temperature	Ambient Temperature Measurement Range	-30℃ ~ 100℃
	Cell Temperature Measurement Range	-30℃ ~ 100℃
	Temperature Test Accuracy	±1℃
PR Value	Cumulative Power Generation Monitoring	Monitor cumulative power of modules & strings and generate curves
	Continuous Test	Auto-test with configurable interval >30s
	Irradiance Monitoring	Continuously monitor irradiance and record curves
	PR Value	Auto calculate PR value and generate PR curve
	Storage	USB Flash Drive
	Current, Voltage & Power	Curve Generation
	Ambient Temperature	Monitoring & Recording
	Backsheet Temperature	Monitoring & Recording

I-V Test	Module Tilt Angle	Monitoring & Recording
	Barcode Input	Wireless Scanner Input
	STC Conversion	Convert to rated power and generate curves
	Calibration Value	Module Model Creation & Calibration
Irradiance	Irradiance Measurement Range	0 ~ 2000W/m²
	Irradiance Measurement Accuracy	Better than ±3%
	Irradiance Meter Expansion for Bifacial Test	1 front sensor,1 rear sensor (consider uneven rear irradiance)
	Temperature Range	-10 ~ 50℃; 14℉ ~ 122℉
	Irradiance Sensor Connection	Support up to 3 synchronized sensors; auto identification & parameter import, no manual setting
Single-side Test Mode	I-V Readings	Front/rear module, display I-V curve & electrical parameters, convertible to STC readings
Bifacial Test Mode	I-V Readings	Synchronized front & rear test, adopt bifacial irradiance, convertible to front-side STC readings
No Ambient Parameter (Free Field)	100m Bluetooth Wireless Connection	Irradiance sensor, temperature sensor, host controller; iPad tablet APP
Field Commissioning Test	Operating Condition @OPC	Open-circuit Voltage; Short-circuit Current
	Standard Test Condition @STC	Open-circuit Voltage; Short-circuit Current
Performance & Acceptance	OPC Working Condition	I-V Curve
	Performance & Acceptance STC	I-V Curve; Pass/Fail Judgment (OK/NOK)
PV Module Database	Database Management	Add or modify module database; support >50,000 module records
Host Battery Charging	PV String	Recover current from PV string during testing for charging
Host Hardware Configuration	External Power Supply	AC220
	Internal Storage	20,000 sets of module test data
	Data Transmission & Communication Port	USB-A
	Display	Color Touch Screen; LED: 800×600px
	Buzzer	Alarm for device fault or test risk
	Ingress Protection	IP67 (Cover Closed); IP40 (Cover Open)
Host Software	Test Cycle	20s
	Data Points	20~48 points
	Data Storage	>2000 datasets
	Continuous Test	20s
	Barcode Input	Wireless Scanner / Manual Input
	UI Language	Switchable Chinese / English
	PV Module Model Database	Universal
Platform System		Android
	Wireless Host Control Function	Irradiance sensor connection, host connection, single test, continuous test, PR test, irradiance acquisition test

Analysis Software	Irradiance Sensor Control	Support 1~3 irradiance sensor IP matching & connection
	Test Result View	Real-time view of I-V curve, performance & STC parameters
	Test Data Comparison	Compare multiple groups of test data
	Host Data Export	Export host data to tablet or USB drive
	PR Test Data Management	PR data management / export / delete
	PV Cloud	Auto upload test data & PR data to PV cloud for backup
	Module Model Management	Create, delete, update module models of all manufacturers
Network Expansion	Multi-device Synchronization	One-click synchronous control for multiple units; parallel monitoring for I-V continuous test on different strings

Hardware Parameters

Category	Parameter	LX-PV33
Host Parameters	Wireless Transmission Distance	100 meters
	Expandable Storage	SD Card
	Display	800×600
	Power Supply	Built-in Lithium Battery / Power Adapter
	Battery Spec	14.8V/4400mAh
	Battery Endurance	20 hours
	Dimension	390×300×200mm
	Weight	5.8kg
	Operating Temperature	-10℃ ~ 50℃
	Storage Temperature	-20℃ ~ 60℃
	Humidity	5 ~ 95%RH
Irradiance Sensor	Interface	RS232 Serial, Bluetooth
	Weight	450g
	Power Supply	4×AAA Battery
Temperature Sensor	Standard	Temperature Measurement
Test Interface	Cable	MC4

Optional Configuration (Cost Extra)

Wireless Scanner	Bluetooth Wireless Barcode Scanner
USB Flash Drive	128G Storage USB Drive
Spare MC4 Test Cable	5m, 10m
Spare Temperature Sensor	Temperature Sensor
Irradiance Sensor for Bifacial Module Test	Irradiance Sensor
Calibration Report	CNAS Calibration Report issued by third-party laboratory (One unit one report)

LX-PV33 Configuration List

No.	Name	Specification	Qty	Unit
1	Main Host	Instrument Test Main Unit	1	Set
2	Irradiance Sensor	Standard	2	Set
3	Irradiance Sensor Bracket	Standard	2	Set
4	Temperature Probe Kit	Temperature Sensor	2	Set
5	Power Adapter	Standard	1	Pc
6	APP Software Package	Wireless operation, data analysis, data export, cloud storage, cloud analysis, STC report generation	1	Set
7	Test Cable Kit	Banana Test Cable + Alligator Clip	4	Pc
8	MC4 1-to-2 Adapter	4m	1	Pc
9	User Manual	Standard	1	Set
10	After-sales Documents	Warranty Card, Certificate of Conformity, etc.	1	Set
