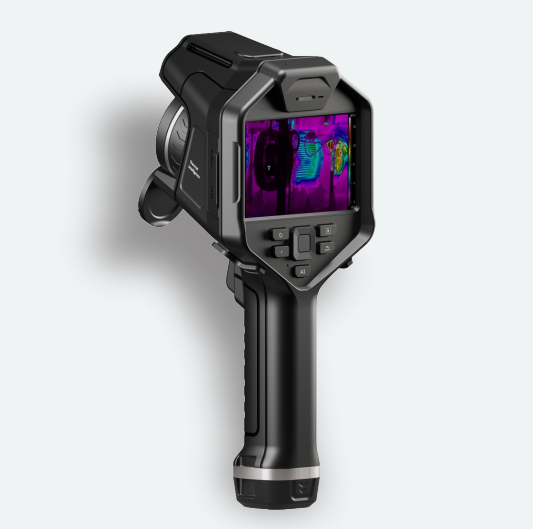

With the continuous improvement of precision and portability requirements for temperature monitoring in industrial operation and maintenance, photovoltaic detection, emergency security and other fields, traditional temperature measurement equipment has low contact detection efficiency and many blind spots, making it difficult to adapt to complex outdoor and high-altitude scenes, and unable to meet the needs of full scene and high-efficiency hidden danger investigation. Suzhou Laikesi New Energy Technology Co., Ltd. (LAILX) is deeply engaged in the field of infrared detection. With the accumulation of core technology, it has launched the LX-F300 handheld thermal imaging instrument, which is centered on "accurate temperature measurement+portable operation+intelligent empowerment", breaking the limitations of traditional temperature measurement and becoming a "portable tool" for multi field hidden danger investigation, injecting new momentum into the safe operation and maintenance of various industries.

Accurate temperature measurement is the core competitiveness of LX-F300, which is equipped with an uncooled infrared focal plane detector with a pixel size of 320 × 240 and a thermal sensitivity (NETD) of<0.05 ℃ @ 30 ℃. It can accurately capture infrared radiation in the 7 μ m~14 μ m wavelength range, clearly display the target temperature distribution, and easily identify small temperature difference hazards. The device supports intelligent temperature range switching between -20 ℃~120 ℃ and 0 ℃~650 ℃, with a temperature measurement accuracy of ± 2 ° C or ± 2% (taking the larger reading). It can adapt to conventional environmental temperature measurement and meet the detection needs of industrial high-temperature scenarios, completely solving the industry pain points of inaccurate temperature measurement and insufficient range of traditional equipment.

To enhance the convenience and accuracy of detection, LX-F300 incorporates multiple innovative designs. Equipped with MagicThermal detail enhancement imaging technology, it can highlight the color thermal imaging of the target area through touch, paired with 15 standard color palettes and 15 reversed color palettes, which can be flexibly switched according to different scenes, making the hidden danger area clear at a glance. The device is equipped with a 5-inch GorillaGlass explosion-proof touch screen with a resolution of 1280 × 720, which is visible under sunlight. The operation interface is simple and intuitive, supporting bilingual switching between Chinese and English.

Novices can operate independently after simple training, greatly reducing the threshold for use.
The optimization of portability and battery life enables the LX-F300 to adapt to various complex scenarios. The equipment adopts ergonomic design, is lightweight, easy to hold and operate with one hand, completely eliminating the drawbacks of traditional thermal imaging instruments being bulky and inconvenient to carry. It can easily shuttle in various scenarios such as high-altitude inspections, outdoor photovoltaic power plants, chemical plants, etc., without the need for additional equipment installation. Built in 2 3500mAh rechargeable lithium-ion batteries, each battery can be used continuously for more than 4 hours. It supports dual battery charging and can be charged to 90% in 2.5 hours. It is also compatible with external power supply, completely solving the anxiety of outdoor testing range.

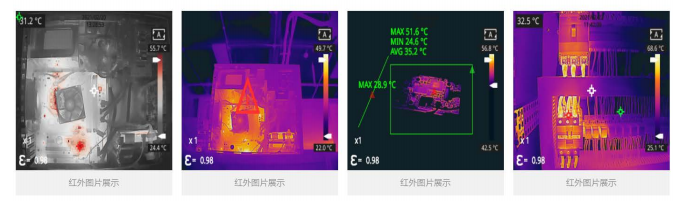

Intelligent upgrading further improves detection efficiency and empowers full process operation and maintenance management. LX-F300 supports multiple transmission methods such as WiFi FTP data fast transfer and Type-C USB 3.0 wired transfer, which can quickly transfer thermal imaging and temperature measurement data to a computer or mobile phone without the need for manual on-site organization. The device is equipped with a built-in full radiation thermal imaging video recording function, which can customize the recording frame rate and interval. It also supports real-time analysis of thermal images on the device, and supports temperature measurement of 4 movable points, 4 areas, and 1 line. It can automatically calculate the full screen temperature rise and phase to phase temperature difference, providing scientific basis for hazard diagnosis.

With its core advantages of precision, portability, and intelligence, LX-F300 is widely used in various fields such as photovoltaic detection, industrial operation and maintenance, emergency security, etc. In the field of photovoltaics, it is possible to quickly detect hidden dangers such as "hot spot effect" and hidden cracks in components, warn in advance of component power attenuation, and safeguard the power generation efficiency of the power station; In the industrial field, it can accurately locate problems such as overheating of electrical equipment joints and aging of circuits, avoiding fire hazards; In emergency scenarios, it can penetrate smoke and darkness to identify targets and provide precise support for rescue work.

As a leading local infrared detection equipment enterprise in Suzhou, LAILX always adheres to independent research and development and quality first. We provide professional R&D and after-sales teams for LX-F300, offering 24-hour rapid response, 1-year original factory warranty, and free software and hardware upgrade services. We can provide customized solutions according to user needs. The launch of LX-F300 not only demonstrates the technological strength of the enterprise, but also breaks the monopoly of imported equipment with high cost-effectiveness, fills the market gap of mid-range handheld thermal imaging devices in China, provides reliable guarantee for safe and efficient operation and maintenance of various industries, and helps promote high-quality development of the industry.
